NAVECO PRODUCTS

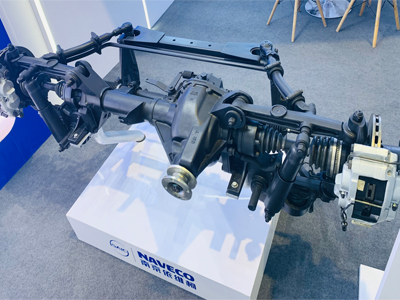

NAVECO 4x4 AXLE
 |
 |
| GVW (T) |
CLASSIFICATION | GAW (KG) |
FLANGE TO FLANGE WIDTH (MM) |
LEAF SPRING DISTANCE (MM) |
PERFORMANCE INPUT TORQUE (Nm) |
BRAKING TORQUE (Nm) |
BRAKE | WHEEL BOLT INDEX CIRCLE DIAMETER (MM) |
MAIN REDUCTION RATIO |
ABS | DIFFERENTIAL LOCK |
| 4.5T | FRONT AXLE | 2070 | 1870 | / | 1200 | 4320 | DISC BRAKE Φ290x25 |
Φ170 | 5.857(7/41) | OPTIONAL | MECHANICAL ELECTRONIC(IN DEVELOPMENT) |
| REAR AXLE | 2900 | 1872 | 1000 | 1200 | 3700 | DRUM BRAKE Φ325x100 |
|||||
| 5T | FRONT AXLE | 2300 | 1870 | / | 1200 | 4320 | DISC BRAKE Φ290x25 |
Φ170 | 5.857(7/41) 6.143(7/43) |
||
| REAR AXLE | 3200 | 1872 | 1000 | 1700 | 3700 | DRUM BRAKE Φ325x100 |
|||||
| 5.6T | FRONT AXLE | 2500 | 1902 | / | 1200 | 6280 | DISC BRAKE Φ301x30 |
Φ205 | 5.857(7/41) 6.143(7/43) |
||
| REAR AXLE | 4300 | 1902 | 1200 | 1700 | 4550 | DISC BRAKE Φ306x28 |
| GVW(KG) | CLASSIFICATION | AXLE TYPE | SCHEMATIC | DRAWING |
| 4.5T | FRONT AXLE | 5912 |  |
5912(2070kg).pdf |
| REAR AXLE | 4512 |  |
4512.pdf |
|
| 5T | FRONT AXLE | 5912 |  |
5912(2300kg).pdf |
| REAR AXLE | 4517/1 |  |
4517_1.pdf |
|
| 5.6T | FRONT AXLE | 5912/2 |  |
5912-2(2500kg) |
| REAR AXLE | 4517/3 | |
4517_3.pdf |
NAVECO GEARBOX
| 2826/2826.5 gearbox (8868231) | |||
|
 |
||
|
Max input torque （N.m） |
Center distance （mm） |
Total weight （kg） |
Gear ratio |
| 255N.m （1）300N.m （2） | 93 | 50.5 | Ⅰ: 6.195 ；Ⅱ: 3.895 ；Ⅲ: 2.26；Ⅳ:1.43； Ⅴ: 1 ；R: 5.69 |

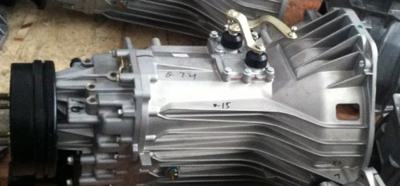

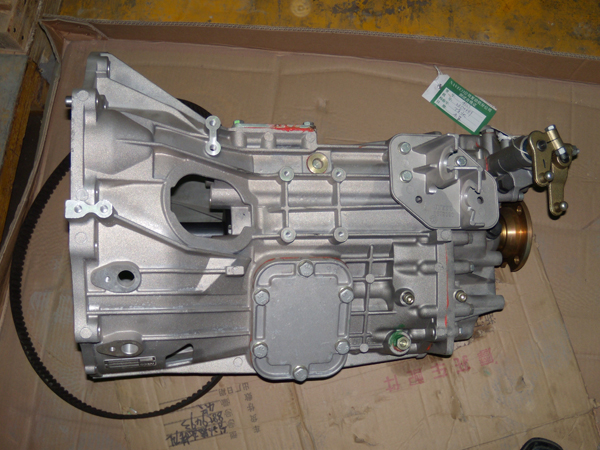

| 2830.5 （5S300 ）gearbox | ||||||
|
  |
|||||
|
Gear ratio
|
Ⅰ
|
Ⅱ
|
Ⅲ | IV | V | Reverse gear |
| 5S300 | 4.99 | 2.6 | 1.52 | 1 | 0.78 | 4.51 |

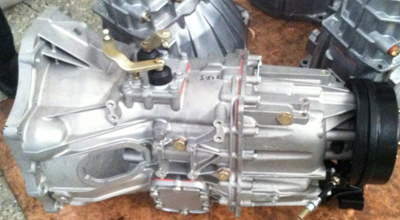

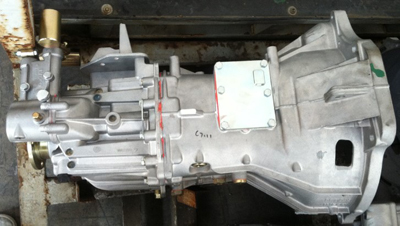

| 2840.6 （6S400）gearbox | |||||||
|
  |
||||||
|
Gear ratio
|
Ⅰ
|
Ⅱ
|
Ⅲ | IV | V | Ⅵ | Reverse gear |
| 6S400 | 5.375 | 3.154 | 2.041 | 1.365 | 1 | 0.791 | 4.838 |
TRUCK
| Model |
 |
NEW MODEL:D913 |
 |
 |
 |
|

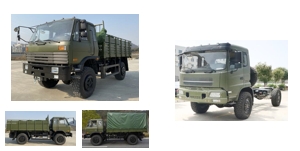

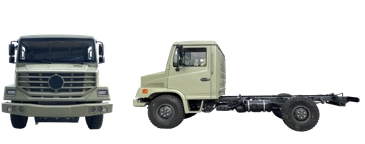

| Model Introduction | CVF2070 4X4 3 ton transportation platform chassis。 It is mainly used for personnel transportation，and equipment and material transportation, and support tasks, and can provide basic chassis for retrofitting various special vehicles. |
CVF2090； 4X4 4.5 ton transportation platform chassis。 It is mainly used for personnel transportation，and equipment and material transportation, and support tasks, and can provide basic chassis for retrofitting various special vehicles. |
CVF2180； 4X4 10 ton transportation platform chassis。 It is mainly used for personnel transportation，and equipment and material transportation, and support tasks, and can provide basic chassis for retrofitting various special vehicles. |

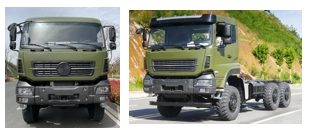

CVF2330； 6X6 20 ton transportation platform chassis。 It is mainly used for personnel transportation，and equipment and material transportation, and support tasks, and can provide basic chassis for retrofitting various special vehicles. |
CVF2250 6X6 15 ton transportation platform chassis。 Mainly used for the modification of oil field specialized vehicles and special purpose vehicles。 |
|
| Main Parameter | Length×width×height (mm) | 5780×2050×2390 | 6500×2150×3500； | 7680×2550×3312 | （8625-9925）×2550×3312 | 8750×2550×3312 |
| Wheelbase (mm) | 3310 | 3600 | 4150 | 3800/4150/4600/5100 | 3800/4100/4600 | |
| Front/ Rear wheel distance (mm) | 1670/1670 | 1876/1870 | 2110/2108 | 2110/2108 | 2110/2108 | |
| Front/ rear suspension (mm) | 930/1640 | 1480/1080 | 1525/2005 | 1525/1850 | 1525/1860 | |
| Capacity (kg) | 3000 | 4500 | 10000 | 20000 | 15000 | |
| Curb weight (kg) | 2500 | 4500 | 6940 | 10500 | 10500 | |
| Factory maximum gross mass(kg) | off road 5500; road 7000 | 9000 | 18000 | 33000 | 25000 | |
| Crew numbers | 2 | 2 | 2 | 2 | 2 | |
| Max. speed (km/h) | ≥110 | ≥90 OR 120 Different transfer boxes | ≥90 | ≥90 | ≥90 | |
| Max. gradient (%) | ≥100% 5.5T | ≥60% | ≥60% | ≥60% | ≥60% | |
| Mini. Turing radius (m) | ≤6.5 | ≤8 | ≤8.75 | ≤9.25/9.75/10.75/11.45 | ≤9.25/9.75/10.75 | |
| Mini. Ground clearance (mm) | 250 | 320 | 380 | 380 | 380 | |
| Approaching/ leaving angle | 40°/26° | 23°/14° | 34°/28° | 34°/30° | 34°/30° | |
| Engine | Model | IVECO SOFIM | Cummins B190-30 | Cummins ISDe245 30 | Cummins ISDe375 30 | Yuchai YC6L330-30 |
| Type | Diesel;4-stroke direct injection, water-cooled | Diesel;4-stroke direct injection, water-cooled, exhaust brake | Diesel;4-stroke direct injection, water-cooled, exhaust brake | Diesel;4-stroke direct injection, water-cooled, exhaust brake | Diesel;4-stroke direct injection, water-cooled, exhaust brake | |
| Cylinder number | 4 | 6 | 6 | 6 | 6 | |
| Displacement (L) | 2.8L | 5.9L | 6.7L | 8.9L | 8.424L | |
| Intake mode | Turbo-charged & intercooled | Turbo-charged & intercooled | Turbo-charged & intercooled | Turbo-charged & intercooled | Turbo-charged & intercooled | |
| Rated output (KW/ps) | 100KW | 140KW | 180KW | 275 KW | 243KW | |
| Rated speed (r/min) | 3800 | 2500 | 2500 | 2100 | 2200 | |
| Peak torque/speed (N.m)(r/min) | 320NM | 650/1400 | 925NM/1100 - 1400 rpm | 1550NM/1100 - 1400 rpm | 1280/1200-1700 | |
| Emission | Euro 3-6 | Euro 3 | Euro 3 | Euro 3 | Euro 3-5 | |
| Chassis | Gear box | IVECO 6MT(5.375/3.154/2.041/1.365/1.0/0.791 R4.848) | 6 MT 6S90 (6.134, 3.533, 2.22, 1.433, 1.00, 0.78, R5.471) | 6MT950 ( 7.03 4.09 2.48 1.56 1.0 0.73 R6.34) | 10MT16B ( 12.74 9.43 6.67 4.83 3.53 2.64 1.95 1.38 1.0 0.75 R13.73 R2.84) |
10 MT (12.74 9.43 6.67 4.83 3.53 2.64 1.95 1.38 1.0 0.75 R13.737 2.84) |
| option:6AT(4.19/3.154/2.041/1.365/1.0/0.791 R4.848) | —— | —— | option：8MT240A (8.15 6.01 4.11 3.05 2.12 1.45 1.00 0.71 R7.57) |
—— | ||
| Clutch | 10.5” Single, pull-type diaphragm spring | φ420 (Single, pull-type diaphragm spring) | φ420 (Single, pull-type diaphragm spring) | φ430 (Single, pull-type diaphragm spring) | φ430 (Single, pull-type diaphragm spring) | |
| Steering system | Steering wheel, mechanical (hydraulic power assist) | Steering wheel, mechanical (hydraulic power assist) | Steering wheel, mechanical (hydraulic power assist) | Steering wheel, mechanical (hydraulic power assist) | Steering wheel, mechanical (hydraulic power assist) | |
| Front solo axle | IVECO 2.5T steerable drive axle，(disconnected axle housing, ball cage constant velocity universal joint) ，Disc brake. |
4.5T steerable drive axle, drum brake； 4.875speed ratio. | 7T steerable drive axle, drum brake； 5.26speed ratio. | 7T steerable drive axle, drum brake； 5.26speed ratio. | 7T steerable drive axle, drum brake； 5.26speed ratio. | |
| Rear tandem Axle | IVECO 4.5T (integrally cast, plug-in axle housing, fully floating half axle),Disc brake. |
4.5T, Speed ratio: 4.875;drum brake | 13T, Speed ratio: 5.26;drum brake | 2X13T, Speed ratio: 5.26;drum brake | 2X13T, Speed ratio: 5.26;drum brake | |
| Transfer boxes | 6MT+Part time 4wd High 1.0 Offset 2.74(Borg Warner Chain drive type) | option1：Part time 4wd High 1.0 Offset 2.22 90km/h | Part time 4wd High 1.0 Offset 2.22 | Part time 4wd High 0.89 Offset 1.54 | Part time 4wd High 0.89 Offset 1.54 | |
| 6AT+Part time 4wd High 1.0 Offset 2.55(Gear transmission type) | option1：All time 4wd High 0.901 Offset 2.08 120km/h | —— | —— | |||
| Front suspension | independent suspension | Spring leaf, 8pcs | Spring leaf, 9pcs | Spring leaf, 9pcs | Spring leaf, 9pcs | |
| Rear suspension | Spring leaf, 4+3pcs | Spring leaf, 10+9pcs | Spring leaf, 12pcs | Spring leaf, 12pcs | Spring leaf, 12pcs | |
| Driving model | 4X4 | 4X4 | 4X4 | 6X6 | 6X6 | |
| Rigid Beam (mm) | 125×75 C section | 250×80×(8+5) High Strength Steel；C section | 300×80×(8+8) High Strength Steel；C section | 300×80×(8+8) High Strength Steel；C section | 300×80×(8+8) High Strength Steel；C section | |
| Brake system | Hydraulic braking | Compressed air drum brake & breathe brake spring energy | Compressed air drum brake & breathe brake spring energy | Compressed air drum brake & breathe brake spring energy | Compressed air drum brake & breathe brake spring energy | |
| ABS | option | option | option | option | have | |
| Tyre | 255/100R16-126/124K | 12.5R20 | 12.5R20 | 12.5R20； option：14.00R20、16.00R20 ； | 14.00R20 option：16.00R20 ； | |
| Spare tyre | below the rear of the chassis | below the rear of the chassis；option：Behind the cab | below the rear of the chassis；option：Behind the cab | below the rear of the chassis；option：Behind the cab | Behind the cab | |
| Fuel tank (L) | 90 | 200 | 200 | 400 | 400 | |
| Electrics system | 12V,80AH | 24V, Storage capacity 120Amp/h | 24V, Storage capacity 120Amp/h | 24V, Storage capacity 180Amp/h | 24V, Storage capacity 180Amp/h | |
| Body Configuration | Driver Cab | Model:TC01; LHS | Model:153; LHS | Model:D916；LHS | Model:D916；LHS | Model:D916；LHS |
| Option | Bulletproof modification | option Model:D913；LHS | —— | —— | —— | |
| Option | RHS | 1、Crew cab；2、RHS；3、Bulletproof modification | 1、Crew cab；2、RHS；3、Bulletproof modification | 1、Crew cab；2、RHS；3、Bulletproof modification | 1、Crew cab；2、RHS | |
| Windows | Electric | Electric | Electric | Electric | Electric | |
| Rear view | Option：1、Electric；2、 Electric Heater | Option：1、Electric；2、 Electric Heater | Option：1、Electric；2、 Electric Heater | Option：1、Electric；2、 Electric Heater | Option：1、Electric；2、 Electric Heater | |
| Air-conditioning system | standard | Built-in air conditioning in the driver's area as standard | standard | standard | standard | |
| Warm air system | standard | Built-in air conditioning in the driver's area as standard | standard | standard | standard | |
| Sleeper | NO | 153 cab NO；D913 cab have。 | YES | YES | YES | |
| Seat | Mechanical | Integral airbag type | Integral airbag type | Integral airbag type | Integral airbag type | |
| Instrument | standard | Combination of all-digital instrument panel | standard | standard | standard | |
| Audio-visual, indicators | radio system | radio system | radio system | radio system | radio system | |
| Lamps | standard | Front and rear combination lights, daytime running lights | standard | standard | standard | |
| Other Option: | 1、repair box； 2、Electric winch；3、rear cargo box； 4、cold areas special configuration； | 1、repair box； 2、Electric winch；3、rear cargo box； 4、cold areas special configuration；5、Tow hitch for the trailer |
1、repair box； 2、Electric winch；3、rear cargo box； 4、cold areas special configuration；5、Tow hitch for the trailer |
1、repair box； 2、Electric winch；3、rear cargo box； 4、cold areas special configuration；5、Tow hitch for the trailer |
1、repair box； 2、Electric winch；3、rear cargo box； 4、cold areas special configuration；5、Tow hitch for the trailer |
Sightseeing Train
Always put the quality of accessories and machine quality and diesel engine in the first place Jiangsu sunlord business network, also hope that through the independent maintenance plant to provide high-quality original parts, to help gain more good reputation.Sightseeing train is one of the product lines represented by our company. The models involved are: YQHC-20,YQHC-30I,YQHC-60I,YQHC-80I
| Main parameters of sightseeing train | ||||
| Sightseeing Train Model | YQHC-20 | YQHC-30I | YQHC-60I | YQHC-80I |
| Engine | SOFIM Diesel Engine | |||
| Gearbox | IVECO Gearbox(Aluminum alloy) | |||
| Tractor Size (L,W,H)mm | 3950×1600×2110 | 4030×1750×2360 | 3950×1600×2110 | 4030×1750×2360 |
| Cab Tractor | 2 Seats | 2 Seaats | 2 Seats | 2 Seats |
| Carriage Size (L,W,H)mm | 3950×1700×2380 | 5350×1850×2450 | 3950×1700×2380 | 5350×1850×2450 |
| Carriage Seating | 4*5=20 Seats | 4*7=28 Seaats | 4*5=20 Seats | 4*7=28 Seats |
| Formation | Tractor+Two carriages | Tractor+Two carriages | Tractor+Three carriages | Tractor+Three carriages |
| Overall Size (L,W,H)mm | 13750*1750*2110 | 17030*1900*2450 | 18800*1750*2380 | 23680*1900*2450 |
| Total Passenger Capacity | 40+2 people | 56+2 people | 60+2 people | 84+2 people |
| Curb weight(kg) | 4500 | 5500 | 5500 | 7000 |
| Maximum Speed(full) | 25 km/h | |||
| Maximum climbing degree(full) | 15% | |||
| Stopping Distances | ≤5.5 m | |||
| Turning radius | ≥7.5 m | |||
| Brake System | air-oil brake system | |||
| Steering System | Accurate tracking and steering device for whole vehicle with trapezoidal structure,power-steering | |||
| Traction System | Seamless Traction Device | |||
| Engine key parameters | SOFIM Diesel Engine | |||
| Engine Model | SOFIM 8140.43S4 | SOFIM 8140.43S5 | SOFIM 8140.43D5 | SOFIM 8142.43S4/S5 |
| Emission Level | EuroⅣ | EuroⅤ | EuroⅤ | EuroⅣ/Ⅴ |
| Max Power | 95kw/3600rpm | 95kw/3200rpm | 92kw/3000rpm | 95kw/3200rpm |
| Max Torque | 290Nm/1800rpm | 300Nm/1800rpm | 320Nm/1600rpm | 300Nm/1800rpm |
| Type | Four-Stroke,Direct injection,Water Cooling Electronic Control High Pressure Common Rail |
|||
| Displacement | 2.798 L | |||
